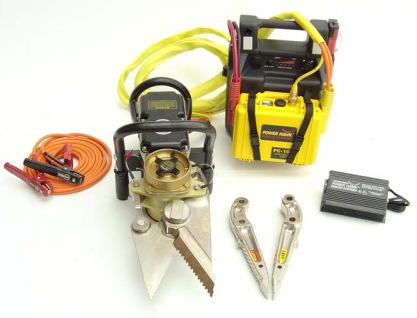

P-16 Rescue Tool

Powerhead Output Torque 72,000 in-lbs (8135 N-m)

Input / Output Ratio 5958:1

Powerhead Articulation Angle 70°

 Attachment Pins: High-strength steel, ball-detent

Motor Inrush Current 220 Amps

Motor Current @ No Load 23 Amps

Motor Current @ Max. Load 155 Amps

Pigtail Cable Length 12” (305 mm)

 With No Attachments

Weight 32 lbs (14.5 kg)

Envelope (LxWxH)

17” x 10” x 12” (432 x 254 x 305 mm3)

With S-1601 Spreaders Attached

Spreading Force (1” from tip)

8,000 to 11,000 lbs

(35.6 – 48.9 kN)

Spreading Force (At back of arm)

17,530 to 45,240 lbs

 (78.0 – 201.2 kN)

Weight 41 lbs (18.6 kg)

Envelope (LxWxH)

25” x 10” x 12”

(635 x 254 x 305 mm3)

Opening Distance 14” (356 mm)

With CS-1602 Straight Cutter Attached

Cutting Force (at notch) 45,000+ lbs (200 kN)

Cutting Force (at blade center) 21,000+ lbs (93.4 kN)

Spreading Force 10,000 to 18,000 lbs

(44.5 – 80.1 kN)

Weight 47.5 lbs (21.5 kg)

Envelope (LxWxH) 27” x 10” x 12”

(686 x 254 x 305 mm3)

Opening Distance 10” (254 mm)

CA-4M Power Cable Assembly

Cable Length 13 ft (4 m)

Weight 6.8 lbs (3.1 kg)

PC-100 Controller Unit

Power Input 12 Volts DC

Case Sealed

Weight 5.6 lbs (2.5 kg)

Envelope (LxWxH) 11” x 4.5” x 7.5”

(279 x 114 x 190 mm3)

PWR-3X12 Power Pack

Battery Type   12V, Valve-Reg., Sealed Lead-Acid

Battery Capacity    33Ampere Hour

Case   Fully Vented

Charge Indicator    5 LEDs with test button

Power Connectors    2 high amp, 1 low amp

Weight:33 lbs (15.0 kg)

Envelope (LxWxH)

 12” x 6.5” x 15.5”

(305 x 178 x 368 mm3)

BC-U1 Battery Charger

Input Voltage & Freq. 90-230 V AC, 50-60 Hz

Max. Output Current 4 A ± 5%

Max. Output Voltage 14.8 ± .20 V DC

Weight 2.4 lbs (1.1 kg)

Envelope (LxWxH) 6.8” x 4.2” x 2”

(172 x 107 x 51 mm3)

JC4-16 Jumper Cables

16 Ft. 4 Ga. Red connector one end, Heavy-duty clamps other end
