Model FAN8‐12V Portable Ventilating Fan
Motor: 12 VDC
Blower Diameter: 8” (203mm)
Dimensions:
14”H x 12”W x 14”D
(355mm x 305mm x 330mm)
Weight: 14 Lbs (6.3 kg)
Airflow:
862 cfm Straight Duct
665 cfm 1‐90° Bend
565 cfm 2‐90° Bends
Noise: 74 dB
Model FAN‐7004CL Canister Duct, 25 Ft.
Duct Length: 25 Ft. (7.6 m)
Duct Diameter: 8” (203mm)
Dimensions (Stowed):
36”L x 13”W x 13”H
(914mm x 330mm x 330mm)
Weight: 25 Lbs (10.4 kg)
PWR-3X12 Power Pack
Battery Type 12 V, Valve-Reg., Sealed Lead-Acid
Battery Capacity 33Ampere Hour
Case Fully Vented
Charge Indicator 5 LEDs with test button
Power Connectors 2 high amp, 1 low amp
Weight 33lbs（15kg）
Envelope (LxWxH) 12”×6.5”×15.5”（305×178×368mm)
BC-U1 Battery Charger
Input Voltage & Freq. 90-230 V AC, 50-60 Hz
Max. Output Current 4A±5％
Max. Output Voltag 14.8±0.2VDC
Weight 2.4lbs（1.1kg）
Envelope (LxWxH) 6.8”X4.2”X2” 172X107X51mm
JC4-16 Jumper Cables
16 Ft. 4 Ga. Red connector one end, Heavy-duty clamps other end.
EC4-16 Extension Cable
16 Ft. 4 Ga. Red connector both ends
Downloads
通风机套装FAN8-25-1B_Ventilating_Fan_Kit.pdf

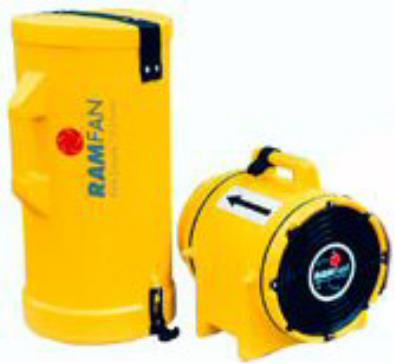

Tough, durable and versatile ...Combines the weather, chemical and dent resistance of a double‐wall, polyethylene shell with a high performance, polypropylene fan blade. Detachable in seconds, the Kwik-coupler canister conveniently reverses from the discharge to the suction,
making use and storage easier while protecting the duct from ripsand tears.
For manholes, tanks, cableways, vaults, or other confined spaces,
this kit provides the means to safely and efficiently ventilate.

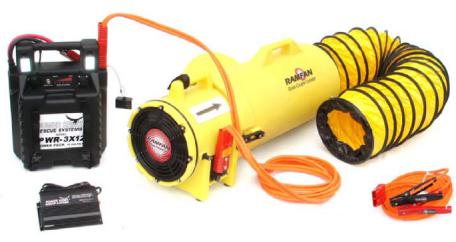

Model FAN8‐25‐1B Kit includes:
• Model FAN8‐12V Portable Ventilating Fan, 12 VDC
• Model FAN‐7004CL Canister Duct, 25 Ft.
• Model PWR‐3X12 Power Pack, 12V
• Model BC‐U1 Battery Charger
• Model EC4‐16 Extension Cables, 16 Ft.
• Model JC4‐16 Jumper Cables, 16 Ft.
