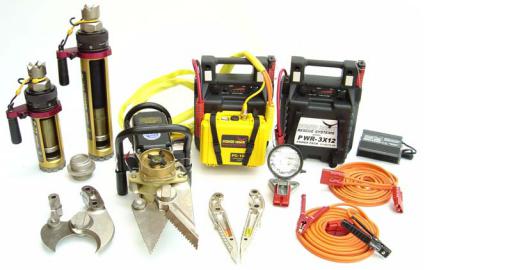

P-16 Rescue Tool

Powerhead Output Torque 72,000 in-lbs (8135 N-m)

Input / Output Ratio 5958:1

Powerhead Articulation Angle 70°

 Attachment Pins: High-strength steel, ball-detent

Motor Inrush Current 220 Amps

Motor Current @ No Load 23 Amps

Motor Current @ Max. Load 155 Amps

Pigtail Cable Length 12” (305 mm)

 With No Attachments

Weight 32 lbs (14.5 kg)

Envelope (LxWxH)

17” x 10” x 12” (432 x 254 x 305 mm3)

With S-1601 Spreaders Attached

Spreading Force (1” from tip)

8,000 to 11,000 lbs

(35.6 – 48.9 kN)

Spreading Force (At back of arm)

17,530 to 45,240 lbs

 (78.0 – 201.2 kN)

Weight 41 lbs (18.6 kg)

Envelope (LxWxH)

25” x 10” x 12”

(635 x 254 x 305 mm3)

Opening Distance 14” (356 mm)

With C-1601 Curved Cutter Attached

Cutting Force (at blade center)

 30,000+ lbs (133.4 kN)

Weight 44 lbs (19.9 kg)

Envelope (LxWxH) 24” x 10” x 12”

(610 x 254 x 305 mm3)

Opening Distance 5” (127 mm)

With CS-1602 Straight Cutter Attached

Cutting Force (at notch) 45,000+ lbs (200 kN)

Cutting Force (at blade center) 21,000+ lbs (93.4 kN)

Spreading Force 10,000 to 18,000 lbs

(44.5 – 80.1 kN)

Weight 47.5 lbs (21.5 kg)

Envelope (LxWxH) 27” x 10” x 12”

(686 x 254 x 305 mm3)

Opening Distance 10” (254 mm)

PC-100 Controller Unit

Power Input 12 Volts DC

Case Sealed

Weight 5.6 lbs (2.5 kg)

Envelope (LxWxH) 11” x 4.5” x 7.5”

(279 x 114 x 190 mm3)

2C0516-1 Ram Coupling

Connects Power Pushers and

Extensions. Weight: 6 lbs (2.7 kg)

CA-4M Power Cable Assembly

Cable Length 13 ft (4 m)

Weight 6.8 lbs (3.1 kg)

PWR-3X12 Power Pack

Battery Type          12 V, Valve-Reg., Sealed Lead-Acid

Battery Capacity    33Ampere Hour

Case              Fully Vented

Charge Indicator    5 LEDs with test button

Power Connectors     2 high amp, 1 low amp

Weight              33lbs（15kg）

Envelope (LxWxH)    12”×6.5”×15.5”（305×178×368mm)

JC4-16 Jumper Cables

16 Ft.  4 Ga. Red connector one end, Heavy-duty clamps other end.

EC4-16 Extension Cable

16 Ft. 4 Ga. Red connector both ends

BC-U1 Battery Charger

Input Voltage & Freq.    90-230 V AC, 50-60 Hz

Max. Output Current   4A±5％

Max. Output Voltag      14.8±0.2VDC

Weight              2.4lbs（1.1kg）

Envelope (LxWxH)      6.8”X4.2”X2” 172X107X51mm

LB-1204  Flood Light

50W，3.9Amps，

 4” Dia. Halogen bulb.

On/Off switch

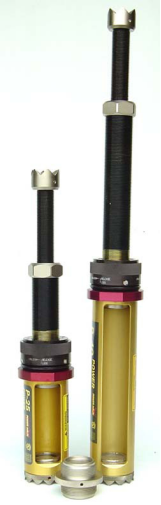

POWER PUSHER® Rams

P-40 Power Pusher Ram

Fully Extended Length: 41in（2600px）

Fully Retracted length 23in（1460px）

Stroke Length:   12in（762.5px）

Adjustment Length: 6in（380px）

Housing Slot Width:   2.25in（142.5px）

Weight ：     36lbs（16.3kg）

P－25Power Pusher Ram

Fully Extended Length: 27in（1714.9999999999998px）

Fully Retracted length 16in（1015px）

Stroke Length: 5in（317.5px）

Adjustment Length    6in（380px）

Housing Slot Width    2.25in（142.5px）

Weight             27lbs（12.2kg）
